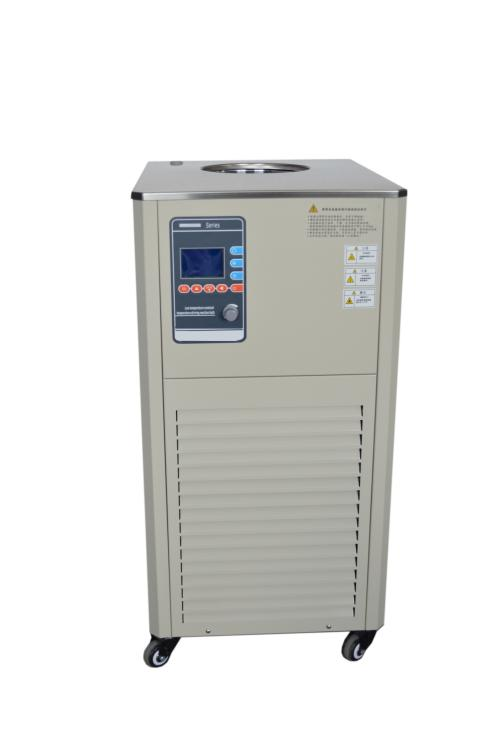

| DHJFSeries technical indicators | |||
| model index | DHJF-2010 | ||
| Minimum temperature without load | 20ºC | ||
| Storage tank capacity | 10L | ||
| Main components and performance | Temperature control capability | ±0.1 | |
| Scope of use | 20ºC-99ºC | ||
| Setting method | Set arbitrarily within the usage range, resolution0.5ºC | ||
| Refrigeration capacity | 370~1700W | ||
| Safety protection | Overload, delay, overcurrent, overheating | ||
| Refrigeration unit | voltage | 220V | |
| Power | 930 W | ||
| electric current | 11.7A | ||
| refrigerant | R22 | ||
| heating | 1500W | ||
| working conditions | circulatory system | power:100W,flow rate:20L/min, lift:4-6m | |
| stir | Internal magnetic stirring, power:30W | ||
| ambient temperature | ≤25ºC | ||
| relative humidity | 60% | ||
| Working power supply | 220V±10% 50HZ | ||
| rotation speed | 20-1000r/min | ||
| Liquid storage tank | Φ280×180 | ||
| Overall dimensions (mm) | 500× 380×775 | ||
| Total Weight | 60 kg | ||
| Technical documents | 1 set (with 2 insurance tubes) | ||
